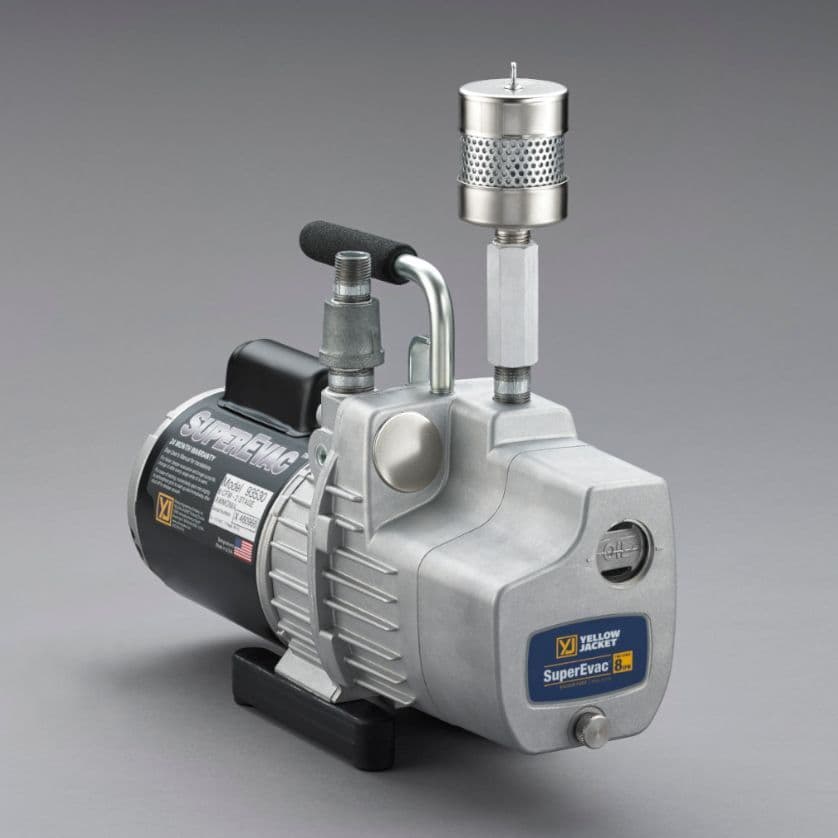

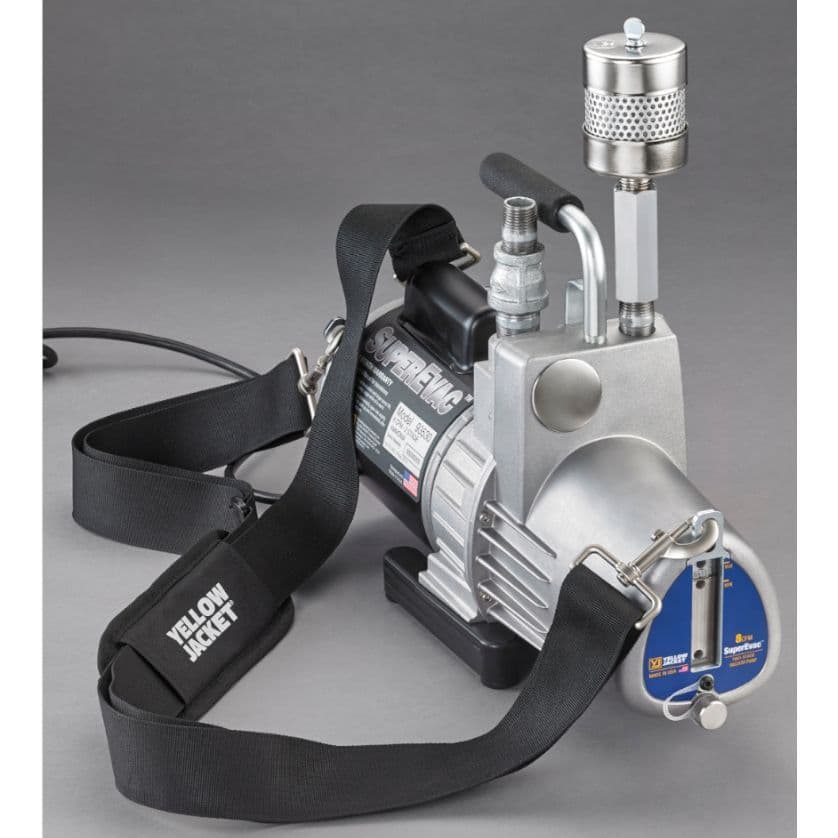

Yellow Jacket SuperEvac Vacuum Pump for Ammonia NH3 UK Model - 93533

190 L/Min, Two stage. Dual Voltage

The SuperEvac Vacuum Pump is a highly efficient, two-stage rotary vane oil-sealed pump field-rated at 15 microns or better. The lower the micron rating, the better the pump performance.

• Isolation valve for oil changes without losing vacuum in the system
• Built-in vacuum indicator gauge
• Wide-mouth oil reservoir port for easier, cleaner filling.

Product Details:

• Isolation valve for oil changes without losing vacuum in the system
• Built-in vacuum indicator gauge
• Wide-mouth oil reservoir port for easier, cleaner filling. Doubles as pump exhaustthreaded to attach garden hose for exhausting to remote location
• Large oil sight glass for easy monitoring of oil level
• Large brass oil drain for easy access to fast oil changes
• Gas ballast valve keeps oil cleaner, longer during evacuation of wet systems
• Internal intake check valve prevents oil backup into the system during a power failure
• Intake filter screen keeps damaging particles from entering the pump
• Heavy duty rotors and bearings
• Heavy duty steel handle with lift hook for well-balanced carrying
• Tethered port caps stay with the pump
• Metal with rubber overlay base for stability
• Made in the USA.

Ammonia Model 93533 Technical Specs:-

• 190 L/M
• 2 Stage
• 1/2" Male pipe intake
• 1/2 hp motor
• 115/230 Dual voltage
• 47oz Oil capacity
• 18.25 L x 6 W x 11.5 H
• 38.8 lbs. (17.6 kg)
