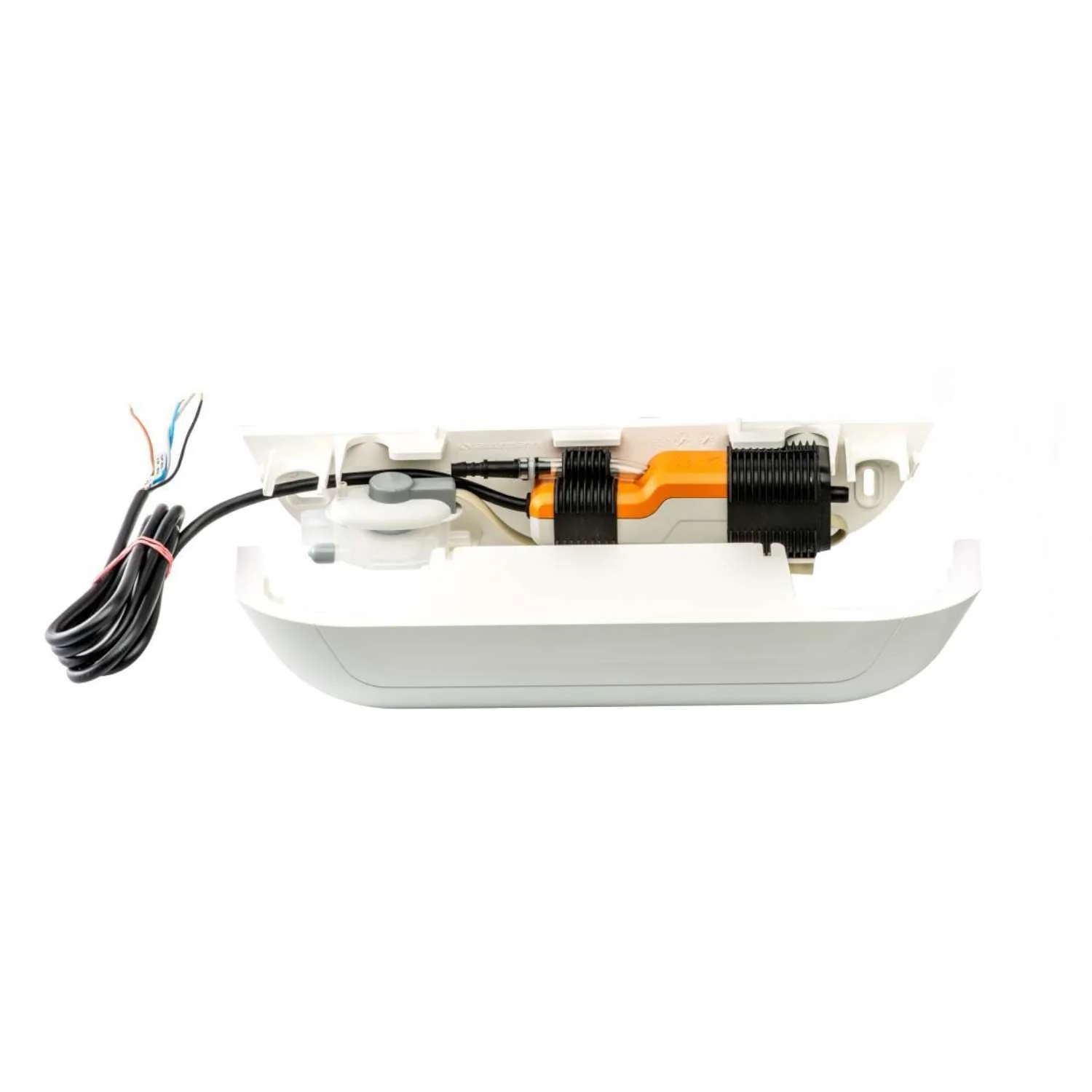

Sauermann Omega Mini Condensate Pump White
The under the unit pump - Ideal for wall mounted air conditioning units

The Sauermann Omega Pack is design to fit under mini-split air conditioning.

It includes the Si-20 pump which incorporates the latest in piston pump technology.

Features

• Modern design
• Easy installation
• Silent
• Easy maintenance
• Proven reliability

Technical details

• Max flow rate: 20 l/h
• Max discharge head: 10 m
• Max pressure: 14 m
• Insulation class: Double insulation
• Mains supply: 230V~ 50/60Hz - 14 W
• Operation conditions: 100%
• Weight: 0,73 kg
• Color: RAL 9010
• Safety switch: NC 8 A résistive 250V
• Detection: Detection float switch unit
• Thermal protection: 115°C (auto-reset)

Detection levels
ON: 16 mm
OFF: 11 mm
SAFETY: 19 mm

Pump sound levels
Less than 25 dBA at 1m

Kit contents

• Si-20 piston pump with detection unit, 0.63 m cable
• 2 anti-vibration rubber dampers
• Clear PVC int. 6 mm L: 60 mm, fitted with a « Drain Safe Device » pre-mounted
• 1.5 m power cable: 2 power wires, 2 safety contact wires.
• 2-part shell (back plate and cover).
• Detection unit installation kit: rubber elbow 90° Ø int. 15 x L 152 mm, vent tube Ø int. Ø int. 4 x L 75 mm, 3 double wire clamp
• 3 screws and plugs for fixing back plate

Click here to view the product spec sheet
