Refco Bourdon Type Pressure Gauges Front Mount

Product image 1
Product image 2

Refco Bourdon Type Pressure Gauges Front Mount

Refco Bourdon Type Pressure Gauges Front Mount

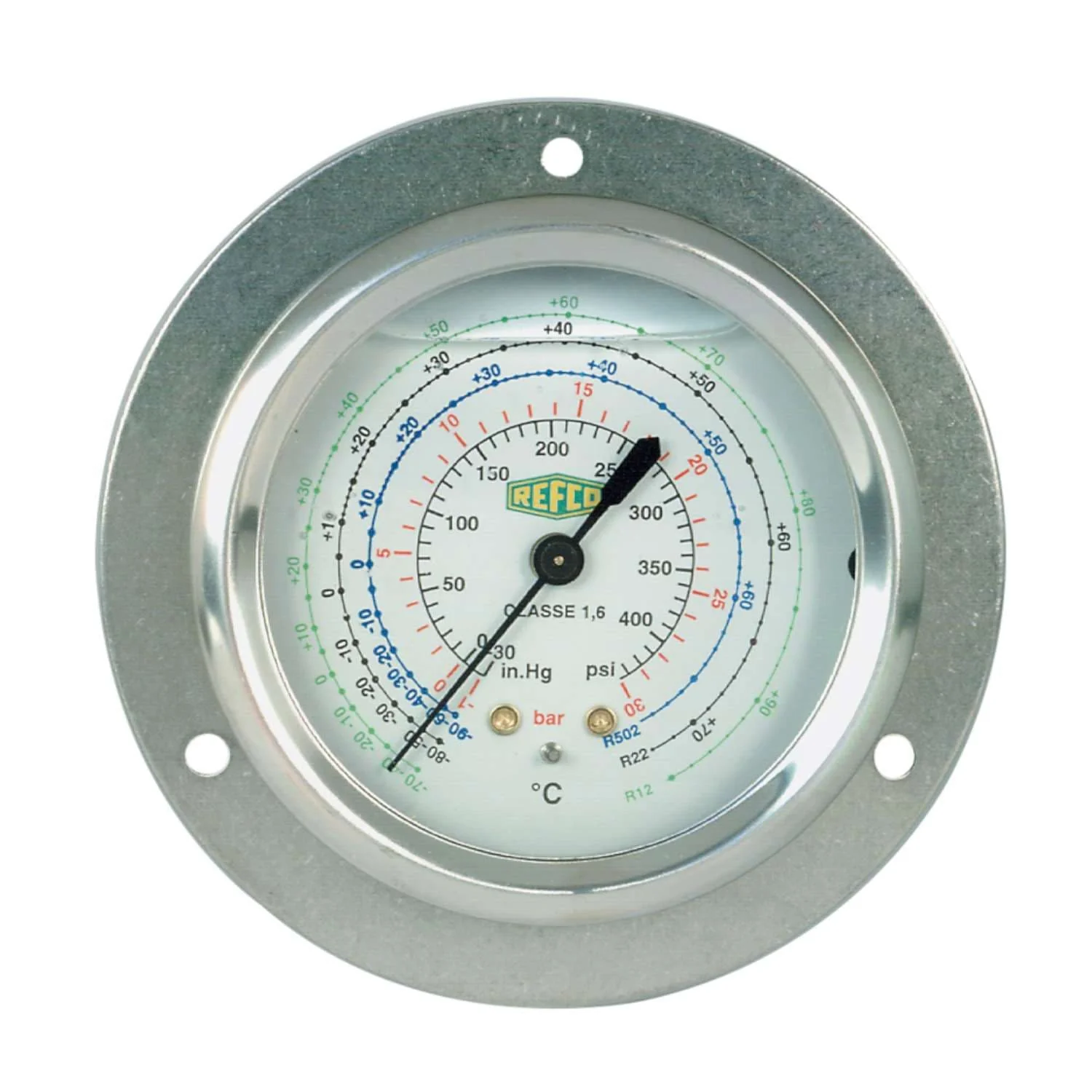

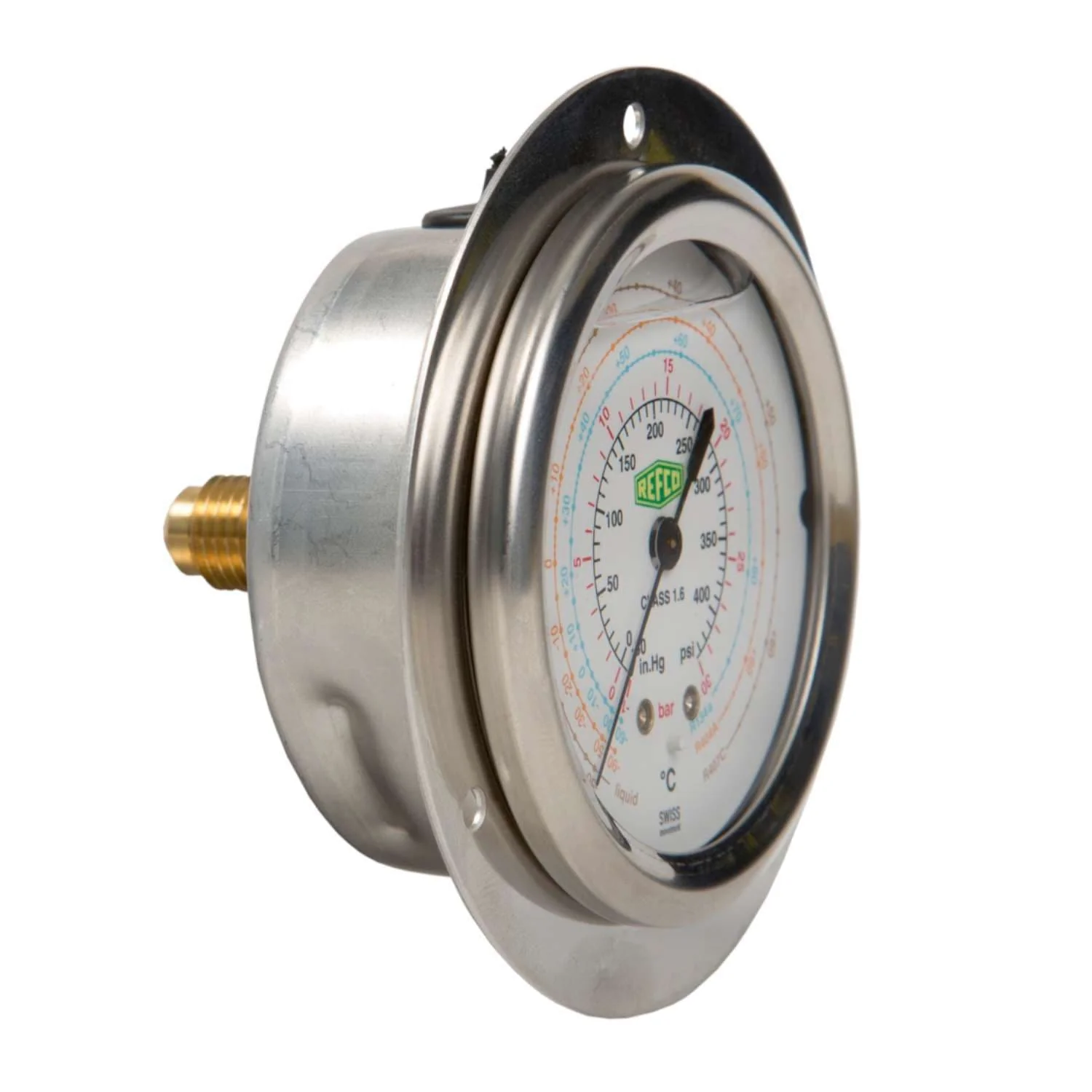

Refco Bourdon Type Pressure Gauges

Ring For Front Mounting (Back mounted also available)
Backside Connection 1/4" SAEĀ (Bottom connection also available)

  • Bourdon Type Gauges
  • 63mm Diameter
  • Stainless Housing
  • Oil filled
  • Scale Bar &Ā PSI
  • Class 1.6
  • Rear connection 1/4" SAE

Available for High and Low side with different refrigerant pressure readings, please select model required below:
Please note:Ā The picture shown is representitive - each model will have different colours/refrigerant scales.
All have BAR & PSI. - Only the Refrigerant scale vary between each model.

Part No Model Description Refrigerant Scales Scales Range
4679330 MR-305-DS-R407C High Side Gauge R407C, R134A, R404A BAR/PSI -1 - 30 bar
4679322 MR-205-DS-R407C Low Side Gauge R407C, R134A, R404A BAR/PSI -1 - 10 bar
4664430 MR-305-DS-MULTI-35BAR High Side Gauge R22, R134a, R404A, R407C BAR/PSI -1 - 35 bar
7230587 MR-205-DS-MULTI-16BAR Low Side Gauge R22, R134a, R404A, R407C BAR/PSI -1 - 16 bar
7870389 MR-305-DS-R134a High Side Gauge R134a, R404A & R507 BAR/PSI -1 - 30 bar
7870354 MR-205-DS-R134a Low Side Gauge R134a, R404A & R507 BAR/PSI -1 - 10 bar
4686946 MR-305-DS-R32 High Side Gauge R32 & R410A BAR/PSI -1 - 54 bar
4686945 MR-205-DS-R32 Low Side Gauge R32 & R410A BAR/PSI -1 - 36 bar
7870451 MR-305-DS-R22 High Side Gauge R22, R134a & R404A BAR/PSI -1 - 30 bar
7870443 MR-205-DS-R22 Low Side Gauge R22, R134a & R404A BAR/PSI -1 - 10 bar

For more information click here to visit the RefcoĀ website

Please select model required below

Select Model
From $60.54
Refco Bourdon Type Pressure Gauges Front Mountā€”
$60.54

Product Information

Shipping & Returns

Description

Refco Bourdon Type Pressure Gauges

Ring For Front Mounting (Back mounted also available)
Backside Connection 1/4" SAEĀ (Bottom connection also available)

  • Bourdon Type Gauges
  • 63mm Diameter
  • Stainless Housing
  • Oil filled
  • Scale Bar &Ā PSI
  • Class 1.6
  • Rear connection 1/4" SAE

Available for High and Low side with different refrigerant pressure readings, please select model required below:
Please note:Ā The picture shown is representitive - each model will have different colours/refrigerant scales.
All have BAR & PSI. - Only the Refrigerant scale vary between each model.

Part No Model Description Refrigerant Scales Scales Range
4679330 MR-305-DS-R407C High Side Gauge R407C, R134A, R404A BAR/PSI -1 - 30 bar
4679322 MR-205-DS-R407C Low Side Gauge R407C, R134A, R404A BAR/PSI -1 - 10 bar
4664430 MR-305-DS-MULTI-35BAR High Side Gauge R22, R134a, R404A, R407C BAR/PSI -1 - 35 bar
7230587 MR-205-DS-MULTI-16BAR Low Side Gauge R22, R134a, R404A, R407C BAR/PSI -1 - 16 bar
7870389 MR-305-DS-R134a High Side Gauge R134a, R404A & R507 BAR/PSI -1 - 30 bar
7870354 MR-205-DS-R134a Low Side Gauge R134a, R404A & R507 BAR/PSI -1 - 10 bar
4686946 MR-305-DS-R32 High Side Gauge R32 & R410A BAR/PSI -1 - 54 bar
4686945 MR-205-DS-R32 Low Side Gauge R32 & R410A BAR/PSI -1 - 36 bar
7870451 MR-305-DS-R22 High Side Gauge R22, R134a & R404A BAR/PSI -1 - 30 bar
7870443 MR-205-DS-R22 Low Side Gauge R22, R134a & R404A BAR/PSI -1 - 10 bar

For more information click here to visit the RefcoĀ website
