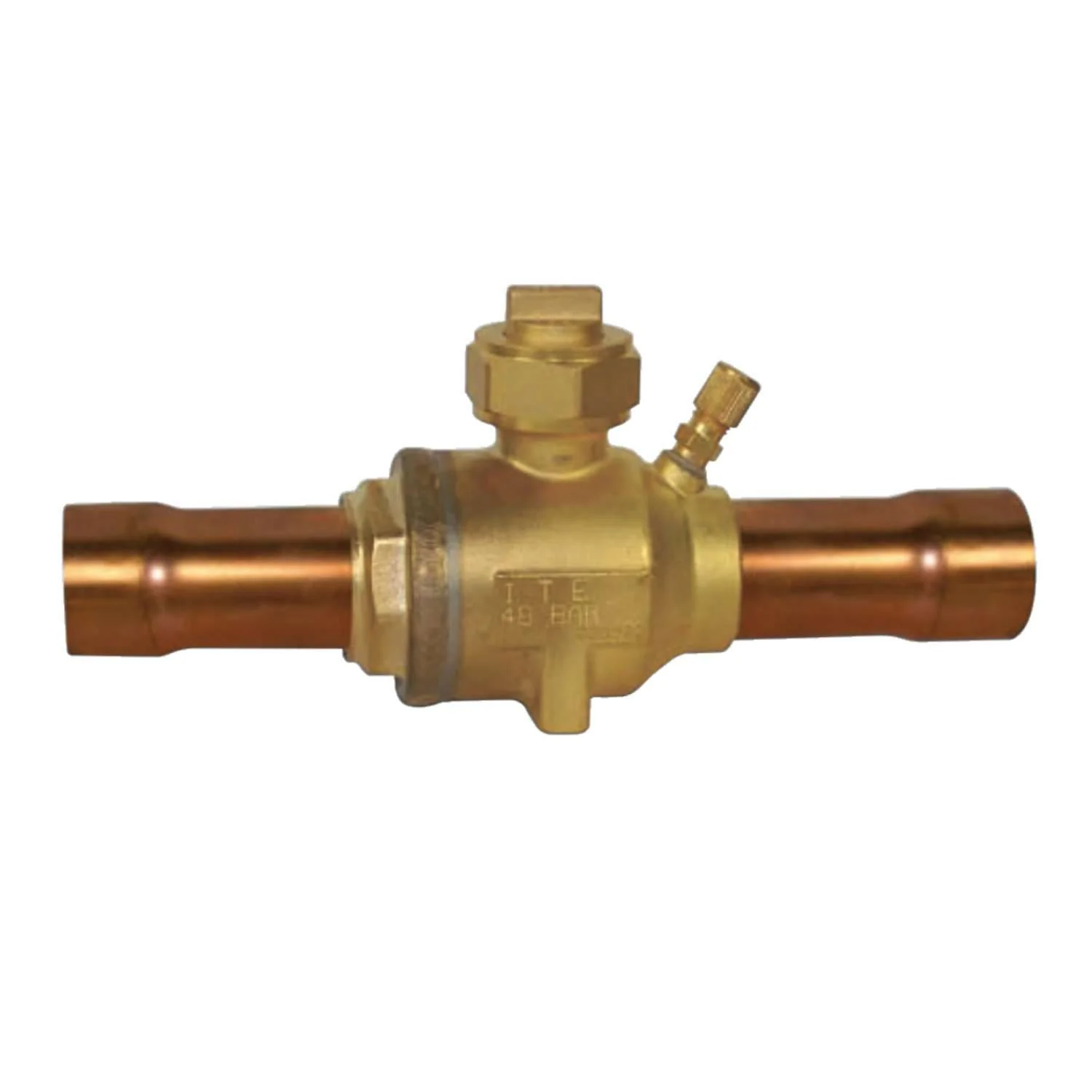

Bi Directional Refrigeration Ball Valves with Access Port
For air conditioning and refrigeration

One of the most advanced 1/4" to 3.1/8" Ball Valves

Features

• The valve may be installed in any direction of flow
• Maximum working pressure - 700PSI (48 bar)
• Operating temperature is from -40 ° C to +150 ° C (-40 ° F to 300 ° F)
• Full flow design reduces risks for leaks
• Supplied with access valve port positioned on the brass body
• Quick valve operation; 1/4 turn valve rod opens and closes the valve
• Extended copper ends for easier brazing
• Each valve is individually tested for vacuum and pressure as well as helium leak tested
• Supplied with pre-drilled threaded holes in brass feet (bracket and 2 screws are included) to allow easy mounting of the valve on a base plate.
• Suitable for all standard CFC, HCFC, HFC Refrigerants and oils (Including R410A and R744/CO2
