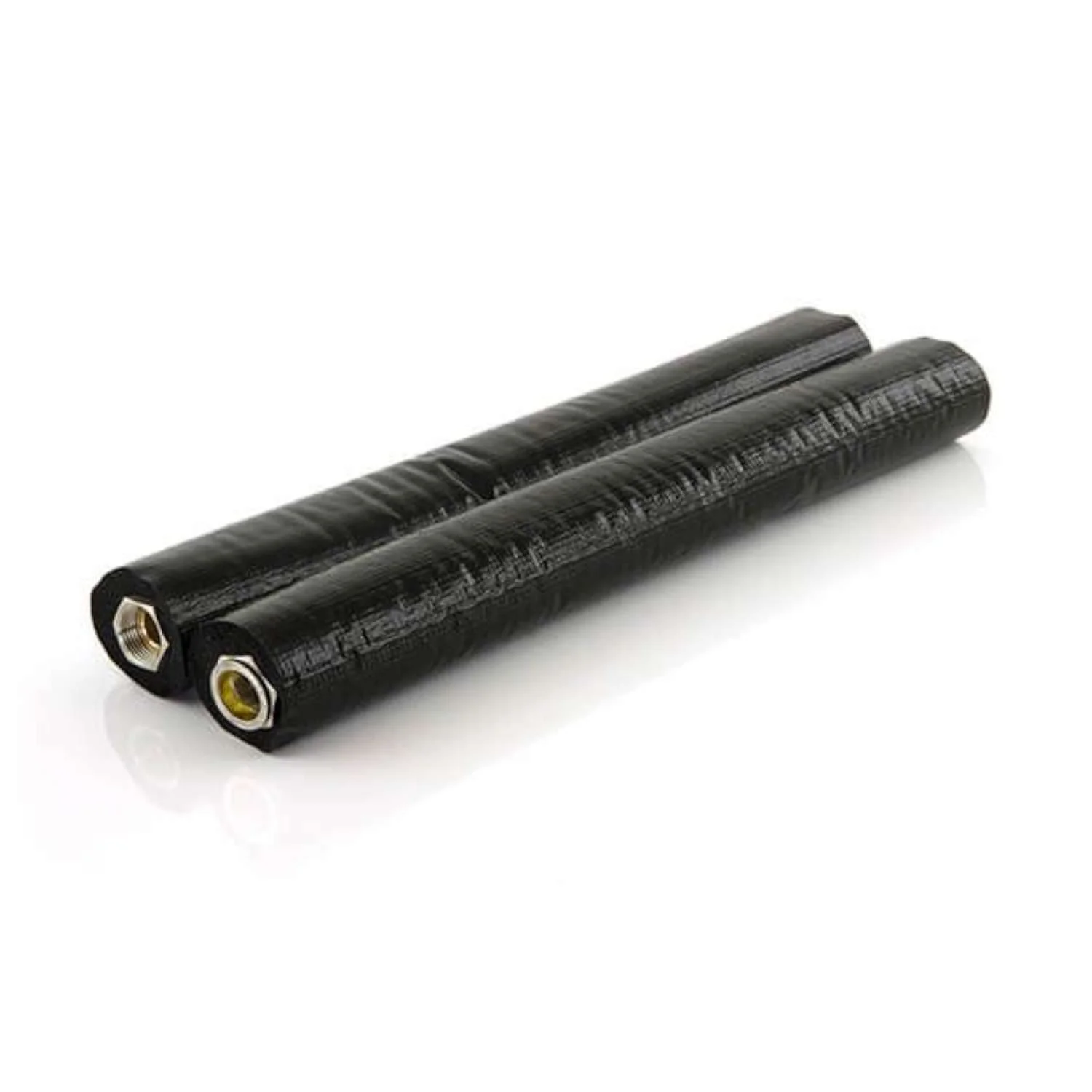

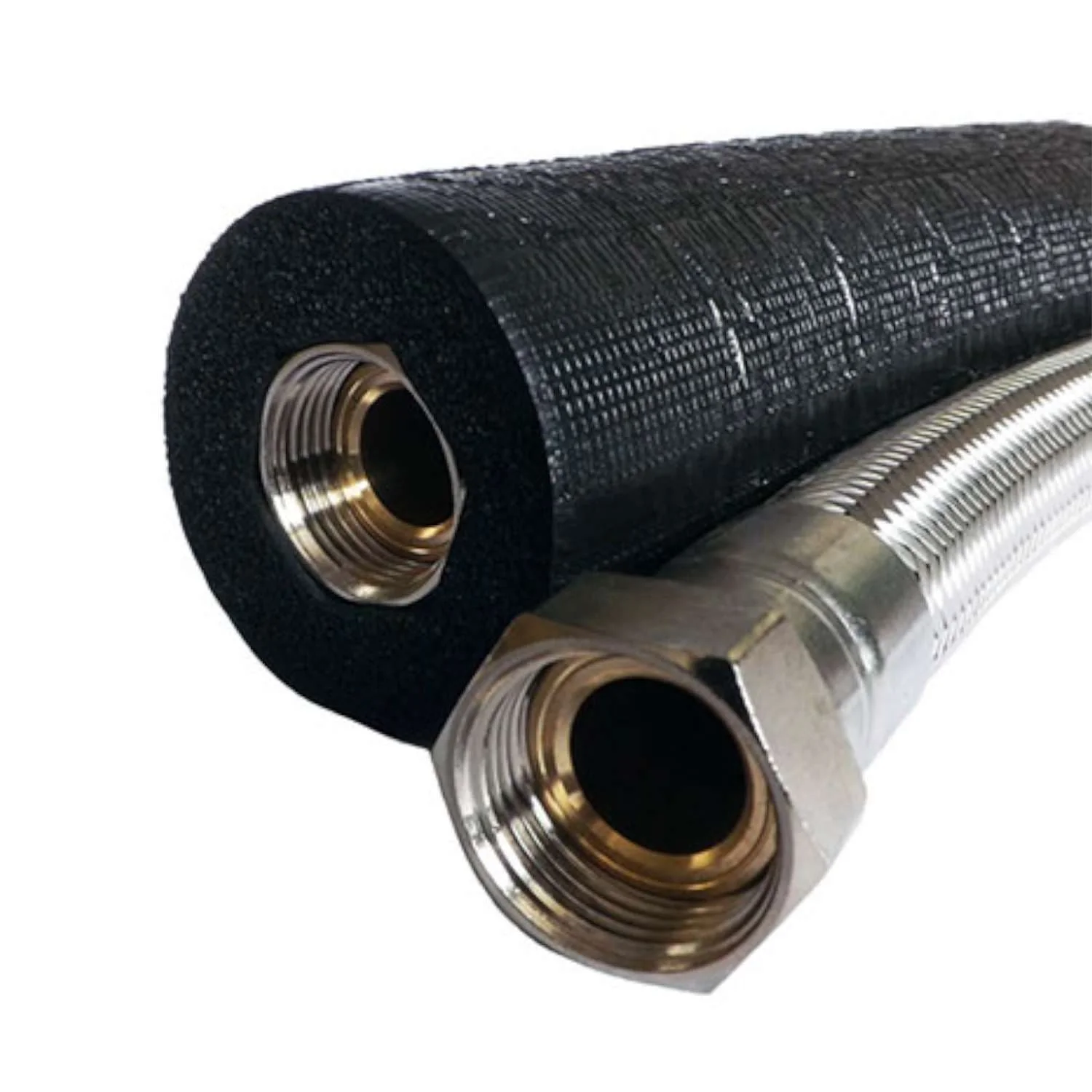

ASHP Flexible Hose Pair 28mm to Female 1" BSP 500mm
Perfect for Air Source Heat Pump Installation

2 x 500mm Long Flexible Hoses
28mm Compression fitting to
1" Female BSP with fibre washers
19mm Insulation

Designed to meet the requirements of the MCS MIS 3005 installation specification to allow the flow and return pipe work to connect to a heat pump. The flexible hose helps to avoid transmission of vibration in the pipe work and allows for a smooth bend when connecting the flow and return pipe to the heat pump or biomass boiler. The 28mm hose is sleeved within a stainless steel braid for added protection, available in female or male BSP thread at one end and 28mm compression fitting at the other. The hoses comes with 19mm thick weather proof, PVC coated insulation for UV stability and added robustness.

Bore	28 mm
Colour	Stainless Steel
Connection	BSP F Swivel x Compression
Finish	Stainless Steel Braid
Length	500 mm
Material	Stainless Steel with PVC Coated Insulation
Size	1" x 28 mm
Suitable Application	Air source heat pump / Biomass Boiler
Type	Flexible Hose
